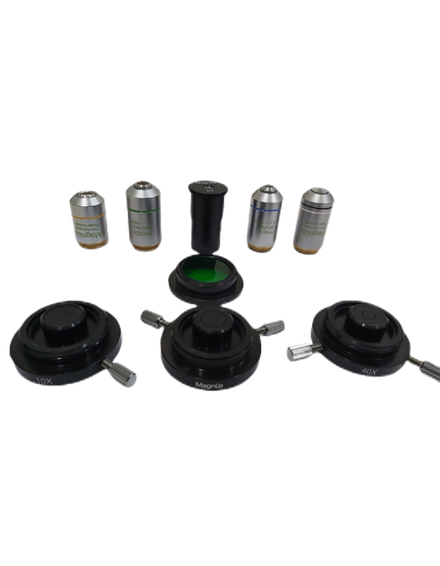

Phase Contrast Microscope Model EM-LXB-PC

BODY
Aluminium die-cast body with all critical movements based on ball bearing and wire guides thereby ensuring smooth and precise motions.

MECHANICAL STAGE
Co-axial low drive mechanical stage (125 mm x 145 mm) (+/-5mm) with traverse area of 50mm x 76mm (+/-5mm) with dual slide holder.

FOCUSING SYSTEM
Co-axial coarse and fine controls with a focus adjustment and fine adjustment knobs. Coarse focus range 20mm. Fine focus rotation 0.2mm.

CONDENSER HOLDER
Rack and pinion mounted condenser holder

UNIVERSAL CONDENSER T-UCD
Universal condenser for Bright field, Darkfield and 5-Position turret for phase contrast, easy and smooth change over. Compact Clear View Centering Telescope (CT) with high-grade optical design and green glass filter for high contrast.

ILLUMINATION BASE WITH OPTION
3W LED light source high brightness, long life (30,000hrs)

NOSE PIECE
Quadruple revolving inward nosepiece based on precision ball-bearing mechanism with positive click stop.

OBJECTIVES
4X
PH10x 0.25
PH40x (spring-loaded) 0.65
100x (oil, spring-loaded) 1.25
Infinity corrected plan phase contrast optics
Uniformly centred, interchangeable & parfocal
Anti-fungus treated, chromatic aberration corrected lenses

INCLINED OBSERVATION HEAD
Binocular head (45 degrees inclined seidentopf). 360 degree rotatable, diopter adjustment.

EYEPIECE (WIDE FIELD) FOR OBSERVATION
WH 10x (FN 20mm) paired eyepiece. The unique optical design provides relief from eye fatigue and renders wide-field images of utmost clarity. Compatible with an optionally available eyepiece micrometer.
